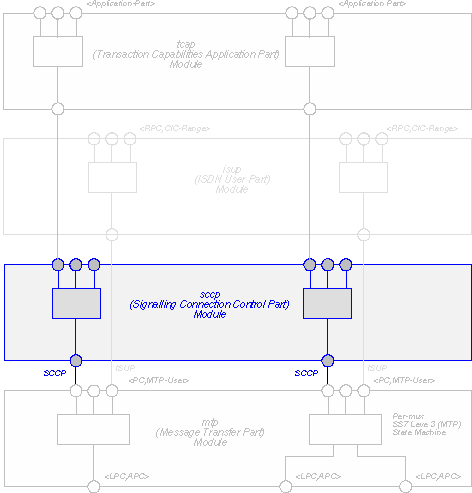

The Signalling Connection Control Part (SCCP) module is used to provide transport layer services above the network layer (MTP). The SCCP module has a one-to-one correspondence with an MTP node downstream and fans-out upstream by SCCP-user.
The Signalling Connection Control Part (SCCP) provides OSI Layer 4 capabilities and, as such, presents an XTI interface upwards. The XTI interface has been extended to permit configuration and SS7 protocol specific information to be exchanged between the Transport Layer (SCCP) and its user applications (e.g. TCAP). The details of the XTI mapping and the extensions to the SS7 protocol are provided in the section on Signalling Connection Control Part.
The SS7 configuration daemon opens an MTP stream and binds it to the SCCP MTP-user for each MTP nodal function equipped with SCCP according to the config file and pushes an SCCP module onto the bound stream. The SCCP module must be configured by the SS7 configuration daemon with rather detailed static Global Title Translation (GTT) routing information which the daemon obtains from special GTT translation tables which have been configured by the system administrator.
SCCP (and other MTP) users can open streams on the SCCP (or MTP) module by
calling the SCCP (or MTP) clone device and binding the stream to an SCCP Called
Party Address (or MTP Point Code and User).
Model
Services
Primitives
Sequences
Implementation
Header File
/*****************************************************************************
@(#) $Id: sccp.h,v 0.7.8.1 2001/12/11 13:16:05 brian Exp $
-----------------------------------------------------------------------------
Copyright (C) 1997-2001 OpenSS7 Corporation. All Rights Reserved.
PUBLIC LICENSE
This license is provided without fee, provided that the above copy-
right notice and this public license must be retained on all copies,
extracts, compilations and derivative works. Use or distribution of
this work in a manner that restricts its use except as provided here
will render this license void.
The author(s) hereby waive any and all other restrictions in respect
of their copyright in this software and its associated documentation.
The authors(s) of this software place in the public domain any novel
methods or processes which are embodied in this software.
The author(s) undertook to write it for the sake of the advancement
of the Arts and Sciences, but it is provided as is, and the author(s)
will not take any responsibility in it.
-----------------------------------------------------------------------------
U.S. GOVERNMENT RESTRICTED RIGHTS. If you are licensing this Software on
behalf of the U.S. Government ("Government"), the following provisions apply
to you. If the Software is supplied by the Department of Defense ("DoD"), it
is classified as "Commercial Computer Software" under paragraph 252.227-7014
of the DoD Supplement to the Federal Acquisition Regulations ("DFARS") (or any
successor regulations) and the Government is acquiring only the license rights
granted herein (the license rights customarily provided to non-Government
users). If the Software is supplied to any unit or agency of the Government
other than DoD, it is classified as "Restricted Computer Software" and the
Government's rights in the Software are defined in paragraph 52.227-19 of the
Federal Acquisition Regulations ("FAR") (or any success regulations) or, in
the cases of NASA, in paragraph 18.52.227-86 of the NASA Supplement to the FAR
(or any successor regulations).
-----------------------------------------------------------------------------
Last Modified $Date: 2001/12/11 13:16:05 $ by $Author: brian $
*****************************************************************************/
#ifndef __SS7_SCCP_H__
#define __SS7_SCCP_H__
#ident "@(#) $Name: $($Revision: 0.7.8.1 $) Copyright (c) 1997-2001 OpenSS7 Corporation."
#ifdef __KERNEL__
#include "../../include/npi.h"
#else
#include <sys/npi.h>
#endif
/*
* These are SCCP specific definitions for NPI...
*/
/*
* QOS structure types for SCCP
*/
#define N_QOS_SEL_SCCP 0x0201
#define N_QOS_OPT_SEL_SCCP 0x0202
#define N_QOS_RANGE_SCCP 0x0203
typedef struct
{
np_ulong n_qos_type; /* always N_QOS_SEL_SCCP */
long protocol_class; /* protocol class 2 or 3 */
long option_flags; /* options flags (return option) */ /* XXX */
long importance; /* importance */
long sequence_selection; /* selected SLS value */
long message_priority; /* MTP message priority */
} N_qos_sel_sccp_t;
typedef struct
{
np_ulong n_qos_type; /* always N_QOS_OPT_SEL_SCCP */
long protocol_class; /* protocol class 0 or 1 */
} N_qos_opt_sel_sccp_t;
typedef struct
{
np_ulong n_qos_type; /* always N_QOS_RANGE_SCCP */
long protocol_classes; /* protocol class support range */
long sequence_selection; /* SLS range */
} N_qos_range_sccp_t;
/*
* Protocol Class bit masks for use with N_QOS_RANGE_SCCP protocol_classes
*/
#define N_QOS_PCLASS_0 0x01
#define N_QOS_PCLASS_1 0x02
#define N_QOS_PCLASS_2 0x04
#define N_QOS_PCLASS_3 0x08
#define N_QOS_PCLASS_ALL 0xff
/*
* SCCP Address format:
*/
typedef struct sccp_addr {
uint ri; /* routing indicator */
uint pc; /* point code (-1 not present) */
uint ssn; /* subsystem number (-1 not present)*/
uint gtt; /* type of global title */
uint tt; /* translaction type */
uint es; /* encoding scheme */
uint nplan; /* numbering plan */
uint nai; /* nature of address indicator */
uint alen; /* address length */
uint8_t addr[0];/* adress digits */
/* followed by alen address bytes */
} sccp_addr_t;
#define SCCP_MAX_ADDR_LENGTH 32
#define SCCP_RI_DPC_SSN 0 /* route on DPC/SSN */
#define SCCP_RI_GT 1 /* route on GT */
#define SCCP_GTTYPE_NONE 0 /* no GT */
#define SCCP_GTTYPE_NAI 1 /* NAI only */
#define SCCP_GTTYPE_TT 2 /* TT only */
#define SCCP_GTTYPE_NP 3 /* TT, ES, NPLAN */
#define SCCP_GTTYPE_NP_NAI 4 /* TT, ES, NPLAN and NAI */
/*
* SCCP Causes
*/
/*
* SCCP Release Causes used in N_DISCON_IND
*/
#define SCCP_RELC_END_USER_ORIGINATED 0x1000
#define SCCP_RELC_END_USER_BUSY 0x1001
#define SCCP_RELC_END_USER_FAILURE 0x1002
#define SCCP_RELC_SCCP_USER_ORIGINATED 0x1003
#define SCCP_RELC_REMOTE_PROCEDURE_ERROR 0x1004
#define SCCP_RELC_INCONSISTENT_CONNECTION_DATA 0x1005
#define SCCP_RELC_ACCESS_FAILURE 0x1006
#define SCCP_RELC_ACCESS_CONGESTION 0x1007
#define SCCP_RELC_SUBSYSTEM_FAILURE 0x1008
#define SCCP_RELC_SUBSYSTEM_CONGESTION 0x1009
#define SCCP_RELC_MTP_FAILURE 0x100a
#define SCCP_RELC_NETWORK_CONGESTION 0x100b
#define SCCP_RELC_EXPIRATION_OF_RESET_TIMER 0x100c
#define SCCP_RELC_EXPIRATION_OF_RECEIVE_INACTIVITY_TIMER 0x100d
#define SCCP_RELC_RESERVED 0x100e
#define SCCP_RELC_UNQUALIFIED 0x100f
#define SCCP_RELC_SCCP_FAILURE 0x1010
/*
* SCCP Return Causes used in N_UDERROR_IND
*/
#define SCCP_RETC_NO_ADDRESS_TYPE_TRANSLATION 0x2000
#define SCCP_RETC_NO_ADDRESS_TRANSLATION 0x2001
#define SCCP_RETC_SUBSYSTEM_CONGESTION 0x2002
#define SCCP_RETC_SUBSYSTEM_FAILURE 0x2003
#define SCCP_RETC_UNEQUIPPED_USER 0x2004
#define SCCP_RETC_MTP_FAILURE 0x2005
#define SCCP_RETC_NETWORK_CONGESTION 0x2006
#define SCCP_RETC_UNQUALIFIED 0x2007
#define SCCP_RETC_MESSAGE_TRANSPORT_ERROR 0x2008
#define SCCP_RETC_LOCAL_PROCESSING_ERROR 0x2009
#define SCCP_RETC_NO_REASSEMBLY_AT_DESTINATION 0x200a
#define SCCP_RETC_SCCP_FAILURE 0x200b
#define SCCP_RETC_SCCP_HOP_COUNTER_VIOLATION 0x200c
#define SCCP_RETC_SEGMENTATION_NOT_SUPPORTED 0x200d
#define SCCP_RETC_SEGMENTATION_FAILURE 0x200e
#define SCCP_RETC_MESSAGE_CHANGE_FAILURE 0x20f7
#define SCCP_RETC_INVALID_INS_ROUTING_REQUEST 0x20f8
#define SCCP_RETC_INVALID_INSI_ROUTING_REQUEST 0x20f9
#define SCCP_RETC_UNAUTHORIZED_MESSAGE 0x20fa
#define SCCP_RETC_MESSAGE_INCOMPATIBILITY 0x20fb
#define SCCP_RETC_CANNOT_PERFORM_ISNI_CONSTRAINED_ROUTING 0x20fc
#define SCCP_RETC_REDUNDANT_ISNI_CONSTRAINED_ROUTING_INFO 0x20fd
#define SCCP_RETC_UNABLE_TO_PERFORM_ISNI_IDENTIFICATION 0x20fe
/*
* SCCP Reset Causes used in N_RESET_IND/REQ
*/
#define SCCP_RESC_END_USER_ORIGINATED 0x3000
#define SCCP_RESC_SCCP_USER_ORIGINATED 0x3001
#define SCCP_RESC_MESSAGE_OUT_OF_ORDER_INCORRECT_PS 0x3002
#define SCCP_RESC_MESSAGE_OUT_OF_ORDER_INCORRECT_PR 0x3003
#define SCCP_RESC_REMOTE_PROC_ERROR_MESSAGE_OUT_OF_WINDOW 0x3004
#define SCCP_RESC_REMOTE_PROC_ERROR_INCORRECT_PS_AFTER_INIT 0x3005
#define SCCP_RESC_REMOTE_PROC_ERROR_GENERAL 0x3006
#define SCCP_RESC_REMOTE_END_USER_OPERATIONAL 0x3007
#define SCCP_RESC_NETWORK_OPERATIONAL 0x3008
#define SCCP_RESC_ACCESS_OPERATIONAL 0x3009
#define SCCP_RESC_NETWORK_CONGESTION 0x300a
#define SCCP_RESC_NOT_OBTAINABLE 0x300b
#define SCCP_RESC_UNQUALIFIED 0x300c
/*
* SCCP Error Causes
*/
#define SCCP_ERRC_LRN_MISMATCH_UNASSIGNED_DEST_LRN 0x4000
#define SCCP_ERRC_LRN_MISMATCH_INCONSISTENT_SOURCE_LRN 0x4001
#define SCCP_ERRC_POINT_CODE_MISMATCH 0x4002
#define SCCP_ERRC_SERVICE_CLASS_MISMATCH 0x4003
#define SCCP_ERRC_UNQUALIFIED 0x4004
/*
* SCCP Refusal Causes used in N_DISCON_IND
*/
#define SCCP_REFC_END_USER_ORIGINATED 0x5000
#define SCCP_REFC_END_USER_CONGESTION 0x5001
#define SCCP_REFC_END_USER_FAILURE 0x5002
#define SCCP_REFC_SCCP_USER_ORIGINATED 0x5003
#define SCCP_REFC_DESTINATION_ADDRESS_UNKNOWN 0x5004
#define SCCP_REFC_DESTINATION_INACCESSIBLE 0x5005
#define SCCP_REFC_NETWORK_RESOURCE_QOS_NOT_AVAIL_PERM 0x5006
#define SCCP_REFC_NETWORK_RESOURCE_QOS_NOT_AVAIL_TRANS 0x5007
#define SCCP_REFC_ACCESS_FAILURE 0x5008
#define SCCP_REFC_ACCESS_CONGESTION 0x5009
#define SCCP_REFC_SUBSYSTEM_FAILURE 0x500a
#define SCCP_REFC_SUBSYSTEM_CONGESTION 0x500b
#define SCCP_REFC_EXPIRATION_OF_NC_ESTAB_TIMER 0x500c
#define SCCP_REFC_INCOMPATIBLE_USER_DATA 0x500d
#define SCCP_REFC_RESERVED 0x500e
#define SCCP_REFC_UNQUALIFIED 0x500f
#define SCCP_REFC_SCCP_HOP_COUNTER_VIOLATION 0x5010
#define SCCP_REFC_SCCP_FAILURE 0x5011
#define SCCP_REFC_NO_ADDRESS_TYPE_TRANSLATION 0x5012
#define SCCP_REFC_UNEQUIPPED_USER 0x5013
/*
* Unitdata transfer request.
*/
#define N_unitdata_req_t SCCP_unitdata_req_t
typedef struct
{
np_ulong PRIM_type; /* always N_UNITDATA_REQ */
np_ulong DEST_length; /* destination address length */
np_ulong DEST_offset; /* destination address offset */
np_ulong RESERVED_field[2]; /* reserved field for DLPI compat*/
np_ulong SRC_length; /* source address length */ /* XXX */
np_ulong SRC_offset; /* source address offset */ /* XXX */
np_ulong QOS_length; /* QOS parameter set length */ /* XXX */
np_ulong QOS_offset; /* QOS parameter set offset */ /* XXX */
} SCCP_unitdata_req_t;
/*
* Unitdata transfer indication
*/
#define N_unitdata_ind_t SCCP_unitdata_ind_t
typedef struct
{
np_ulong PRIM_type; /* always N_UNITDATA_IND */
np_ulong SRC_length; /* source address length */
np_ulong SRC_offset; /* source address offset */
np_ulong DEST_length; /* destination address length */
np_ulong DEST_offset; /* destination address offset */
np_ulong ERROR_type; /* return error cause */
np_ulong QOS_length; /* QOS parameter set length */ /* XXX */
np_ulong QOS_offset; /* QOS parameter set offset */ /* XXX */
} SCCP_unitdata_ind_t;
/*
* Unitdata error indication for CLNS services
*/
#define N_uderror_ind_t SCCP_uderror_ind_t
typedef struct
{
np_ulong PRIM_type; /* always N_UDERROR_IND */
np_ulong DEST_length; /* destination address length */
np_ulong DEST_offset; /* destination address offset */
np_ulong RESERVED_field; /* reserved for DLPI compatibility */
np_ulong ERROR_type; /* error type */
np_ulong SRC_length; /* source address length */ /* XXX */
np_ulong SRC_offset; /* source address offset */ /* XXX */
} SCCP_uderror_ind_t;
#ifdef __KERNEL__
/*
* N_UNITDATA_REQ 8 - Connection-less data send request
* ---------------------------------------------------------------
*/
#define n_unitdata_req sccp_n_unitdata_req
static inline mblk_t *sccp_n_unitdata_req(
caddr_t dst_ptr, size_t dst_len,
caddr_t src_ptr, size_t src_len,
caddr_t qos_ptr, size_t qos_len, mblk_t *dp)
{
mblk_t *mp;
N_unitdata_req_t *p;
if ( (mp = allocb(sizeof(*p)+dst_len+src_len+qos_len, BPRI_MED)) )
{
mp->b_datap->db_type = M_PROTO;
p = (N_unitdata_req_t *)mp->b_wptr;
p->PRIM_type = N_UNITDATA_REQ;
p->DEST_length = dst_len;
p->DEST_offset = dst_len?sizeof(*p):0;
p->SRC_length = src_len;
p->SRC_offset = src_len?sizeof(*p)+dst_len:0;
p->QOS_length = qos_len;
p->QOS_offset = qos_len?sizeof(*p)+dst_len+src_len:0;
p->RESERVED_field[0] = 0;
p->RESERVED_field[1] = 0;
mp->b_wptr += sizeof(*p);
bcopy(dst_ptr, mp->b_wptr, dst_len);
mp->b_wptr += dst_len;
bcopy(src_ptr, mp->b_wptr, src_len);
mp->b_wptr += src_len;
bcopy(qos_ptr, mp->b_wptr, qos_len);
mp->b_wptr += qos_len;
mp->b_cont = dp;
}
return(mp);
}
/*
* N_UNITDATA_IND 20 - Connection-less data receive indication
* ---------------------------------------------------------------
*/
#define n_unitdata_ind sccp_n_unitdata_ind
static inline mblk_t *sccp_n_unitdata_ind(
caddr_t dst_ptr, size_t dst_len,
caddr_t src_ptr, size_t src_len,
caddr_t qos_ptr, size_t qos_len, mblk_t *dp)
{
mblk_t *mp;
N_unitdata_ind_t *p;
if ( (mp = allocb(sizeof(*p)+dst_len+src_len, BPRI_MED)) )
{
mp->b_datap->db_type = M_PROTO;
p = (N_unitdata_ind_t *)mp->b_wptr;
p->PRIM_type = N_UNITDATA_IND;
p->DEST_length = dst_len;
p->DEST_offset = dst_len?sizeof(*p):0;
p->SRC_length = src_len;
p->SRC_offset = src_len?sizeof(*p)+dst_len:0;
p->QOS_length = qos_len;
p->QOS_offset = qos_len?sizeof(*p)+dst_len+src_len:0;
p->ERROR_type = 0;
mp->b_wptr += sizeof(*p);
bcopy(dst_ptr, mp->b_wptr, dst_len);
mp->b_wptr += dst_len;
bcopy(src_ptr, mp->b_wptr, src_len);
mp->b_wptr += src_len;
bcopy(qos_ptr, mp->b_wptr, qos_len);
mp->b_wptr += qos_len;
mp->b_cont = dp;
}
return(mp);
}
/*
* N_UDERROR_IND 21 - UNITDATA Error Indication
* ---------------------------------------------------------------
*/
#define n_uderror_ind sccp_n_uderror_ind
static inline mblk_t *sccp_n_uderror_ind(uint etype,
caddr_t dst_ptr, size_t dst_len,
caddr_t src_ptr, size_t src_len, mblk_t *dp)
{
mblk_t *mp;
N_uderror_ind_t *p;
if ( (mp = allocb(sizeof(*p)+dst_len+src_len, BPRI_MED)) )
{
mp->b_datap->db_type = M_PROTO;
p = (N_uderror_ind_t *)mp->b_wptr;
p->PRIM_type = N_UDERROR_IND;
p->ERROR_type = etype;
p->DEST_length = dst_len;
p->DEST_offset = dst_len?sizeof(*p):0;
p->SRC_length = src_len;
p->SRC_offset = src_len?sizeof(*p)+dst_len:0;
p->RESERVED_field = 0;
mp->b_wptr += sizeof(*p);
bcopy(dst_ptr, mp->b_wptr, dst_len);
mp->b_wptr += dst_len;
bcopy(src_ptr, mp->b_wptr, src_len);
mp->b_wptr += src_len;
mp->b_cont = dp;
}
return(mp);
}
#endif
#endif __SS7_SCCP_H__
|
|
|
|
|
|
|
|
|
| OpenSS7 |
Copyright © 1997-2002,
OpenSS7 Corporation,
All Rights Reserved. |
